第三章 CA Server

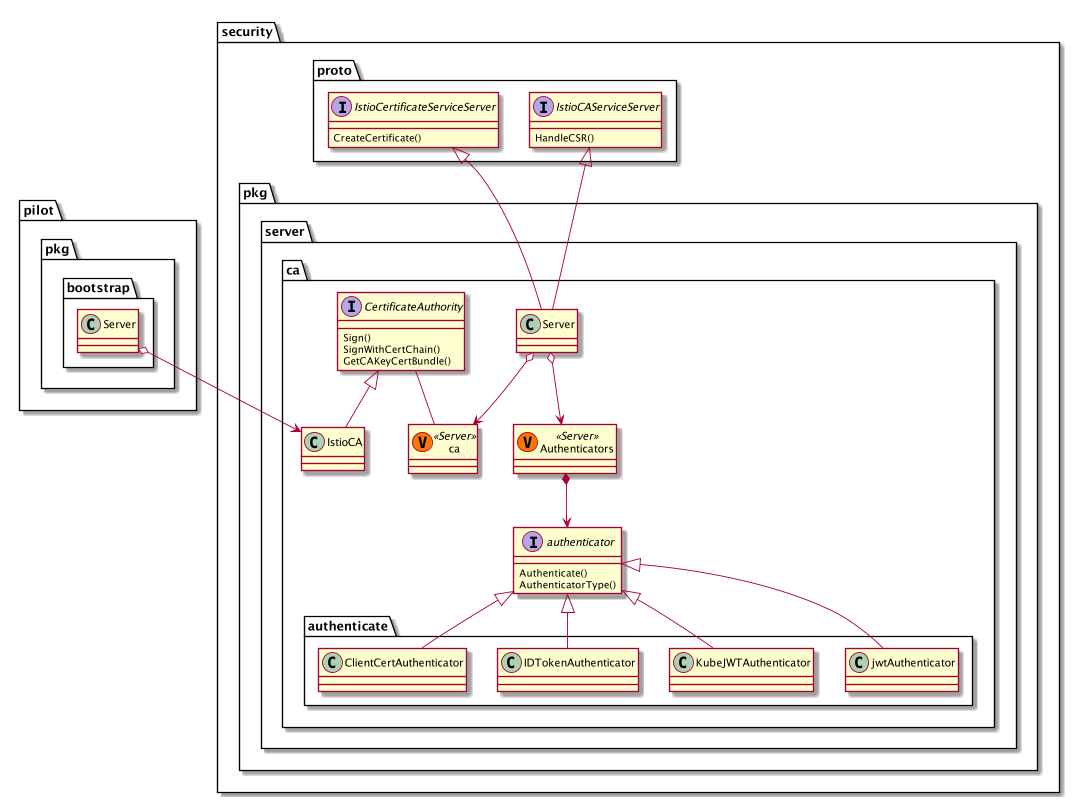

type Server struct {
    ...
	Authenticators []authenticator
	ca             CertificateAuthority
    ...
}

type authenticator interface {
    Authenticate(ctx context.Context) (*authenticate.Caller, error)
    AuthenticatorType() string
}

// IstioCA generates keys and certificates for Istio identities.
type IstioCA struct {
    ...
	keyCertBundle util.KeyCertBundle
	rootCertRotator *SelfSignedCARootCertRotator
}

type Server struct {
    ...
	ca               *ca.IstioCA
}

func NewServer(args *PilotArgs) (*Server, error) {
    ...
	if args.TLSOptions.CaCertFile == "" && s.EnableCA() {
		s.ca, err = s.createCA(corev1, caOpts)
        ...
	}

	if s.ca != nil {
		s.addStartFunc(func(stop <-chan struct{}) error {
			s.RunCA(s.secureGrpcServer, s.ca, caOpts)
			return nil
		})

    ...
}

func (s *Server) createCA(client corev1.CoreV1Interface, opts *CAOptions) (*ca.IstioCA, error) {
    ...
	signingKeyFile := path.Join(LocalCertDir.Get(), "ca-key.pem")

	if _, err := os.Stat(signingKeyFile); err != nil {
        ...
		caOpts, err = ca.NewSelfSignedIstioCAOptions(ctx,
			selfSignedRootCertGracePeriodPercentile.Get(), SelfSignedCACertTTL.Get(),
			selfSignedRootCertCheckInterval.Get(), workloadCertTTL.Get(),
			maxCertTTL, opts.TrustDomain, true,
			opts.Namespace, -1, client, rootCertFile,
			enableJitterForRootCertRotator.Get())
        ...
	} else {
		log.Info("Use local CA certificate")

		caOpts, err = ca.NewPluggedCertIstioCAOptions(certChainFile, signingCertFile, signingKeyFile,
			rootCertFile, workloadCertTTL.Get(), maxCertTTL, opts.Namespace, client)
        ...
	}

	istioCA, err := ca.NewIstioCA(caOpts)
    ...
	istioCA.Run(rootCertRotatorChan)

	return istioCA, nil
}

// NewIstioCA returns a new IstioCA instance.
func NewIstioCA(opts *IstioCAOptions) (*IstioCA, error) {
	ca := &IstioCA{
		defaultCertTTL: opts.DefaultCertTTL,
		maxCertTTL:     opts.MaxCertTTL,
		keyCertBundle:  opts.KeyCertBundle,
		livenessProbe:  probe.NewProbe(),
	}

	if opts.CAType == selfSignedCA && opts.RotatorConfig.CheckInterval > time.Duration(0) {
		ca.rootCertRotator = NewSelfSignedCARootCertRotator(opts.RotatorConfig, ca)
	}
	return ca, nil
}

func (ca *IstioCA) Run(stopChan chan struct{}) {
	if ca.rootCertRotator != nil {
		// Start root cert rotator in a separate goroutine.
		go ca.rootCertRotator.Run(stopChan)
	}
}

func NewSelfSignedIstioCAOptions(...) (caOpts *IstioCAOptions, err error) {

	caSecret, scrtErr := client.Secrets(namespace).Get(context.TODO(), CASecret, metav1.GetOptions{})
    ...
	caOpts = &IstioCAOptions{
		CAType:         selfSignedCA,
		DefaultCertTTL: defaultCertTTL,
		MaxCertTTL:     maxCertTTL,
		RotatorConfig: &SelfSignedCARootCertRotatorConfig{
			CheckInterval:      rootCertCheckInverval,
			caCertTTL:          caCertTTL,
			retryInterval:      cmd.ReadSigningCertRetryInterval,
			certInspector:      certutil.NewCertUtil(rootCertGracePeriodPercentile),
			caStorageNamespace: namespace,
			dualUse:            dualUse,
			org:                org,
			rootCertFile:       rootCertFile,
			enableJitter:       enableJitter,
			client:             client,
		},
	}
	if scrtErr != nil {
		pkiCaLog.Infof("Failed to get secret (error: %s), will create one", scrtErr)
        ...
	} else {
		pkiCaLog.Infof("Load signing key and cert from existing secret %s:%s", caSecret.Namespace, caSecret.Name)
        ...
	}

	if err = updateCertInConfigmap(namespace, client, caOpts.KeyCertBundle.GetRootCertPem()); err != nil {
		pkiCaLog.Errorf("Failed to write Citadel cert to configmap (%v). Node agents will not be able to connect.", err)
	} else {
		pkiCaLog.Infof("The Citadel's public key is successfully written into configmap istio-security in namespace %s.", namespace)
	}
	return caOpts, nil
}

    if scrtErr != nil {
        pkiCaLog.Infof("Failed to get secret (error: %s), will create one", scrtErr)
        ...
        pemCert, pemKey, ckErr := util.GenCertKeyFromOptions(options)
        ...
        rootCerts, err := util.AppendRootCerts(pemCert, rootCertFile)
        ...
        if caOpts.KeyCertBundle, err = util.NewVerifiedKeyCertBundleFromPem(pemCert, pemKey, nil, rootCerts); err != nil {
            return nil, fmt.Errorf("failed to create CA KeyCertBundle (%v)", err)
        }

        // Write the key/cert back to secret so they will be persistent when CA restarts.
        secret := k8ssecret.BuildSecret("", CASecret, namespace, nil, nil, nil, pemCert, pemKey, istioCASecretType)
        if _, err = client.Secrets(namespace).Create(context.TODO(), secret, metav1.CreateOptions{}); err != nil {
            pkiCaLog.Errorf("Failed to write secret to CA (error: %s). Abort.", err)
            return nil, fmt.Errorf("failed to create CA due to secret write error")
        }
        pkiCaLog.Infof("Using self-generated public key: %v", string(rootCerts))
    } else {

    } else {
        pkiCaLog.Infof("Load signing key and cert from existing secret %s:%s", caSecret.Namespace, caSecret.Name)
        rootCerts, err := util.AppendRootCerts(caSecret.Data[caCertID], rootCertFile)
        if err != nil {
            return nil, fmt.Errorf("failed to append root certificates (%v)", err)
        }
        if caOpts.KeyCertBundle, err = util.NewVerifiedKeyCertBundleFromPem(caSecret.Data[caCertID],
            caSecret.Data[caPrivateKeyID], nil, rootCerts); err != nil {
            return nil, fmt.Errorf("failed to create CA KeyCertBundle (%v)", err)
        }
        pkiCaLog.Infof("Using existing public key: %v", string(rootCerts))
    }

// NewPluggedCertIstioCAOptions returns a new IstioCAOptions instance using given certificate.
func NewPluggedCertIstioCAOptions(certChainFile, signingCertFile, signingKeyFile, rootCertFile string,
	defaultCertTTL, maxCertTTL time.Duration, namespace string, client corev1.CoreV1Interface) (caOpts *IstioCAOptions, err error) {
	caOpts = &IstioCAOptions{
		CAType:         pluggedCertCA,
		DefaultCertTTL: defaultCertTTL,
		MaxCertTTL:     maxCertTTL,
	}
	if caOpts.KeyCertBundle, err = util.NewVerifiedKeyCertBundleFromFile(
		signingCertFile, signingKeyFile, certChainFile, rootCertFile); err != nil {
		return nil, fmt.Errorf("failed to create CA KeyCertBundle (%v)", err)
	}

	// Validate that the passed in signing cert can be used as CA.
	// The check can't be done inside `KeyCertBundle`, since bundle could also be used to
	// validate workload certificates (i.e., where the leaf certificate is not a CA).
	b, err := ioutil.ReadFile(signingCertFile)
	if err != nil {
		return nil, err
	}
	block, _ := pem.Decode(b)
	if block == nil {
		return nil, fmt.Errorf("invalid PEM encoded certificate")
	}
	cert, err := x509.ParseCertificate(block.Bytes)
	if err != nil {
		return nil, fmt.Errorf("failed to parse X.509 certificate")
	}
	if !cert.IsCA {
		return nil, fmt.Errorf("certificate is not authorized to sign other certificates")
	}

	crt := caOpts.KeyCertBundle.GetCertChainPem()
	if len(crt) == 0 {
		crt = caOpts.KeyCertBundle.GetRootCertPem()
	}
	if err = updateCertInConfigmap(namespace, client, crt); err != nil {
		pkiCaLog.Errorf("Failed to write Citadel cert to configmap (%v). Node agents will not be able to connect.", err)
	}
	return caOpts, nil
}

	// Run the SDS signing server.
	// RunCA() must be called after createCA() and initDNSListener()
	// because it depends on the following conditions:
	// 1) CA certificate has been created.
	// 2) grpc server has been started.
	if s.ca != nil {
		s.addStartFunc(func(stop <-chan struct{}) error {
			s.RunCA(s.secureGrpcServer, s.ca, caOpts)
			return nil
		})
        ...
	}

func (s *Server) RunCA(grpc *grpc.Server, ca caserver.CertificateAuthority, opts *CAOptions) {
    ...

	iss := trustedIssuer.Get()
	aud := audience.Get()

	ch := make(chan struct{})
	token, err := ioutil.ReadFile(s.jwtPath)
	if err == nil {
		tok, err := detectAuthEnv(string(token))
		if err != nil {
			log.Warna("Starting with invalid K8S JWT token", err, string(token))
		} else {
			if iss == "" {
				iss = tok.Iss
			}
			if len(tok.Aud) > 0 && len(aud) == 0 {
				aud = tok.Aud[0]
			}
		}
	}

    ...
	caServer, startErr := caserver.NewWithGRPC(grpc, ca, maxWorkloadCertTTL.Get(),
		false, []string{"istiod.istio-system"}, 0, spiffe.GetTrustDomain(),
		true, features.JwtPolicy.Get(), s.clusterID, s.kubeClient,
		s.multicluster.GetRemoteKubeClient)

    ...
	if iss != "" && // issuer set explicitly or extracted from our own JWT
		k8sInCluster.Get() == "" { // not running in cluster - in cluster use direct call to apiserver
		oidcAuth, err := newJwtAuthenticator(iss, opts.TrustDomain, aud)
		if err == nil {
			caServer.Authenticators = append(caServer.Authenticators, oidcAuth)
			log.Infoa("Using out-of-cluster JWT authentication")
		} else {
			log.Infoa("K8S token doesn't support OIDC, using only in-cluster auth")
		}
	}

	caServer.Authenticators = append(caServer.Authenticators, &authenticate.ClientCertAuthenticator{})

	if serverErr := caServer.Run(); serverErr != nil {
        ...
	}
}

func NewWithGRPC(grpc *grpc.Server, ca CertificateAuthority, ttl time.Duration, forCA bool,
	hostlist []string, port int, trustDomain string, sdsEnabled bool, jwtPolicy, clusterID string,
	kubeClient kubernetes.Interface,
	remoteKubeClientGetter authenticate.RemoteKubeClientGetter) (*Server, error) {

    ...
	authenticators := []authenticator{&authenticate.ClientCertAuthenticator{}}

	// Only add k8s jwt authenticator if SDS is enabled.
	if sdsEnabled {
		authenticator := authenticate.NewKubeJWTAuthenticator(kubeClient, clusterID, remoteKubeClientGetter,
			trustDomain, jwtPolicy)
		authenticators = append(authenticators, authenticator)
		serverCaLog.Info("added K8s JWT authenticator")
	}

    ...
	server := &Server{
		Authenticators: authenticators,
		authorizer:     &registryAuthorizor{registry.GetIdentityRegistry()},
		serverCertTTL:  ttl,
		ca:             ca,
		hostnames:      hostlist,
		forCA:          forCA,
		port:           port,
		grpcServer:     grpc,
		monitoring:     newMonitoringMetrics(),
	}
	return server, nil
}

	token, err := ioutil.ReadFile(s.jwtPath)
	if err == nil {
		tok, err := detectAuthEnv(string(token))
		if err != nil {
			log.Warna("Starting with invalid K8S JWT token", err, string(token))
		} else {
			if iss == "" {
				iss = tok.Iss
			}
			if len(tok.Aud) > 0 && len(aud) == 0 {
				aud = tok.Aud[0]
			}
		}
	}

    ...

	if iss != "" && // issuer set explicitly or extracted from our own JWT
		k8sInCluster.Get() == "" { // not running in cluster - in cluster use direct call to apiserver
        ...
		oidcAuth, err := newJwtAuthenticator(iss, opts.TrustDomain, aud)
		if err == nil {
			caServer.Authenticators = append(caServer.Authenticators, oidcAuth)
			log.Infoa("Using out-of-cluster JWT authentication")
		} else {
			log.Infoa("K8S token doesn't support OIDC, using only in-cluster auth")
		}
	}

		grpcOptions = append(grpcOptions, s.createTLSServerOption(), grpc.UnaryInterceptor(grpc_prometheus.UnaryServerInterceptor))

func (s *Server) createTLSServerOption() grpc.ServerOption {
	cp := x509.NewCertPool()
	rootCertBytes := s.ca.GetCAKeyCertBundle().GetRootCertPem()
	cp.AppendCertsFromPEM(rootCertBytes)

	config := &tls.Config{
		ClientCAs:  cp,
		ClientAuth: tls.VerifyClientCertIfGiven,
		GetCertificate: func(*tls.ClientHelloInfo) (*tls.Certificate, error) {
			if s.certificate == nil || shouldRefresh(s.certificate) {
				newCert, err := s.getServerCertificate()
                ...
				s.certificate = newCert
			}
			return s.certificate, nil
		},
	}
	return grpc.Creds(credentials.NewTLS(config))
}

func (s *Server) getServerCertificate() (*tls.Certificate, error) {
	opts := util.CertOptions{
		RSAKeySize: 2048,
	}

    ...
	csrPEM, privPEM, err := util.GenCSR(opts)
	if err != nil {
		return nil, err
	}

	certPEM, signErr := s.ca.SignWithCertChain(csrPEM, s.hostnames, s.serverCertTTL, false)
    ...

	cert, err := tls.X509KeyPair(certPEM, privPEM)
	if err != nil {
		return nil, err
	}
	return &cert, nil
}
